Item
|

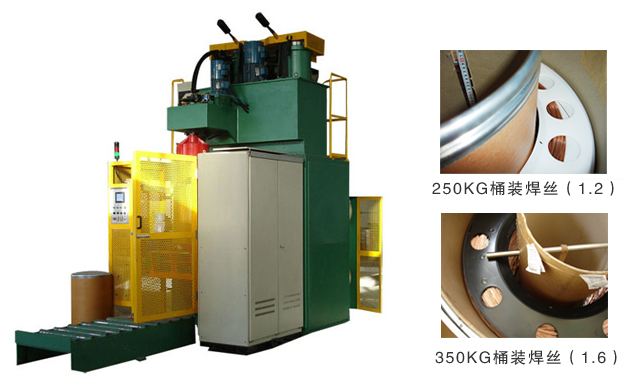

TS400 welding wire drum packing machine
|
|
Machine composition
|
FX630(800)pay off machine+tensile strength rack+TS400+electrol control cabinet
|
|
Material
|
CO2welding wire,stainless wire,CCAW,zinc galvanized steel wire
|
|
Diameter of the wire
|
Φ0.8~Φ1.65mm
|
|
Speed
|
normally 12m/s
|
designed 15m/s
|
|
Tensile sreength adjust
|
auto adjust tensile strength
|
|
Stop machine time
|
normally 60s
|
semergent stop ≤3s
|
|
Take up weight
|
paper drum Φ600×Φ400×830/350kg
paper drum Φ510×Φ300×810/250kg
paper drum Φ650×Φ445×760/350kg
|
|
Motor
|
380V/50Hz frequency inverter motor total power 27kw
|
|
Electron control system
|
all digital control(ProfiBus or digital-to-anagloue)
AC Frequency invert+PLC+man machine interface+fault self diagnosis
imported all electronical instrument
|
|
Overall dimension
|
length 10m×width 3.5m×height 4m
|
|
Production cycle
|
2 months after placing an order
|
